Прозрачная PVC гибкая занавеска кристаллическая линия

output

350-550kg / h according to material characteristics and product specifications

Machine color

Light gray & dark white guard board in orange or sky blue

Plant demand

Crane, fork lift and other lifting equipment; installation materials and tools;

Space: (M * M * M): 22M (long) 2.5M (width) 2.5M (height);

supply voltage

Power supply voltage: 3-phase, 380V 50Hz

Voltage tolerance: 5% / -5%;

Frequency: 50HZ ±: 2%

Total power: 260KW (production line)

Wire / water pipe / cable / compressed air

Wire / cable: corresponding cables required from the main control cabinet to the cabinet of each machine;

Water supply: 0.5 cubic / h

Compressed air: 0.4-0.8PM

mode of payment

40% Deposit, 60% full payment for delivery.

delivery time

45 Working days (not affected by national policy)

pack

PE wrap film wrapped or naked

guarantee period

12 Months

offer validity

30 Days

Equipment quotation time: 2022-8-19

1

Spiral auto loading + stainless steel hopper

1set

2

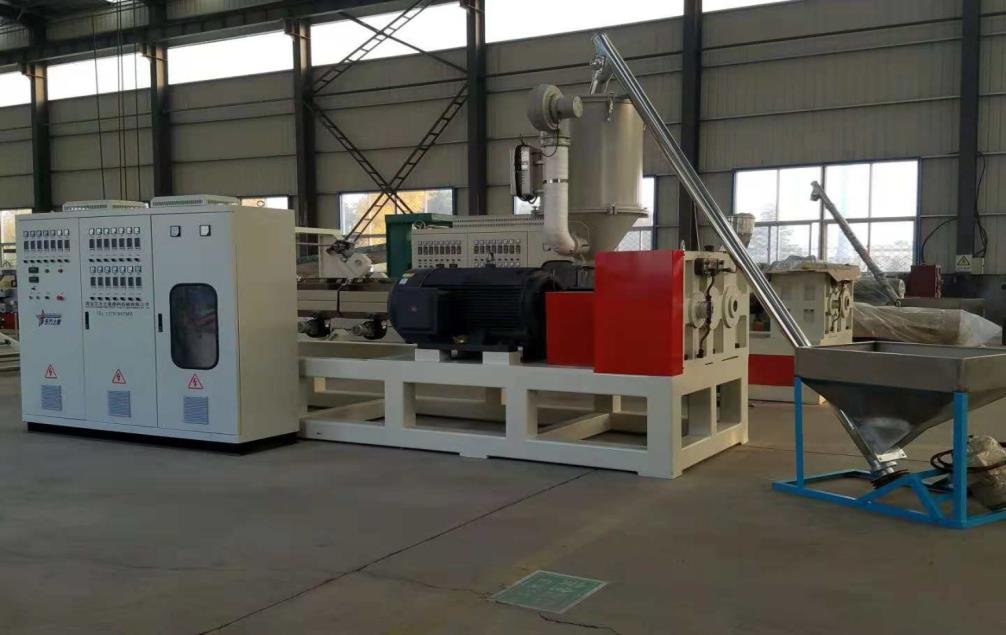

SJ150-35 /1 Extruder

1set

3

DK-24 Electric control system

1set

4

MJ-2150 Board extrusion mold

1set

5

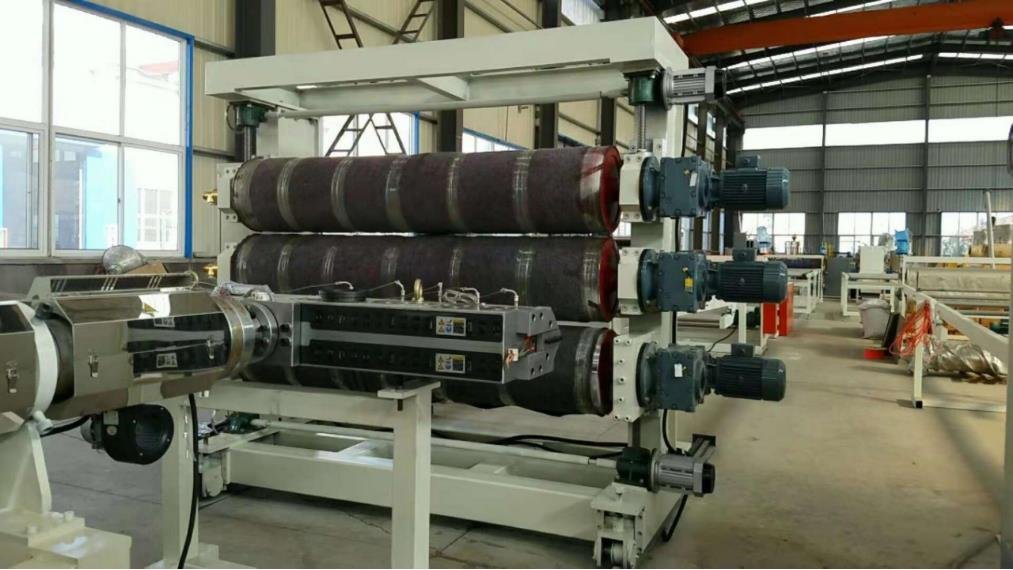

BF-2200X∮400 Three-roller calender

1set

6

BF-2200-6000 Cooling bracket

1set

7

BF-2200X ∮240 rubber roller tractor

1set

8

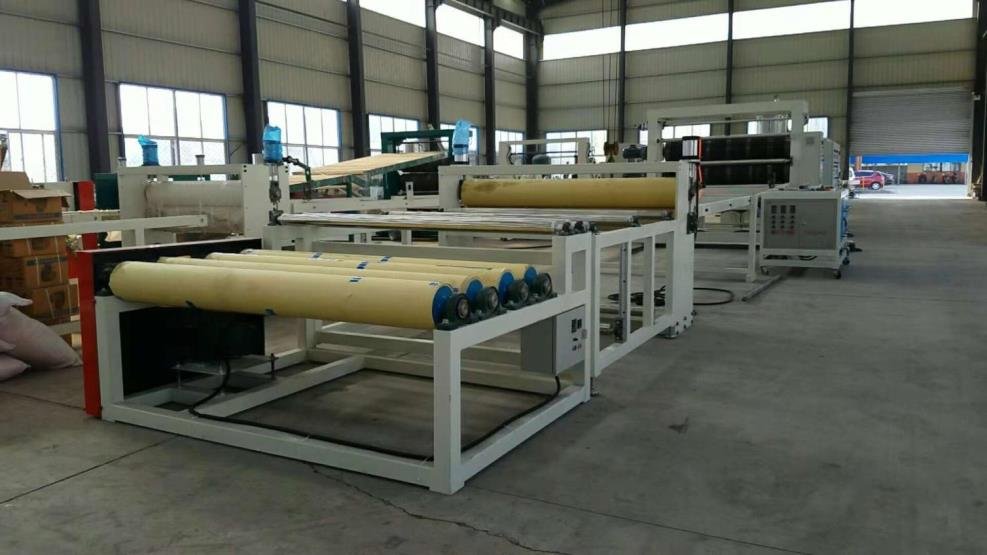

BF-2200 Winding Machine

1set

9

Technical data of random equipment

1set
